Fabricated Products offer CNC Metal Sheet Forming to clients across the UK, Ireland and Worldwide. Our sheet metal forming Department invested in state-of-the-art machinery and equipment, including 2 Trumpf and 3 LVD Brake Presses. From simple brackets to complex metal housings, our Press Brake metal forming capabilities will yield quality assured parts to ISO9001:2008.
Our highly experienced personnel specialise in offering press brake forming services for a wide range of sheet metal fabrications. We can bend everything from structural components to highly cosmetic panels.
The TruBend machines have an integrated crowning axis, guaranteeing bend quality over the full length of the part. It’s unique I-Axis can offset the bottom tool by 30mm. Used in conjunction with multi-V or hem tools, complicated profiles can be bent in a single process.
We also have Trumpf’s ACB (Automatically Controlled Bending) system which delivers accurate bends even where the materials vary in thickness and springback qualities. It eliminates the usual set-up scrap which means we can offer a highly cost-effective service, making it especially useful for small jobs.

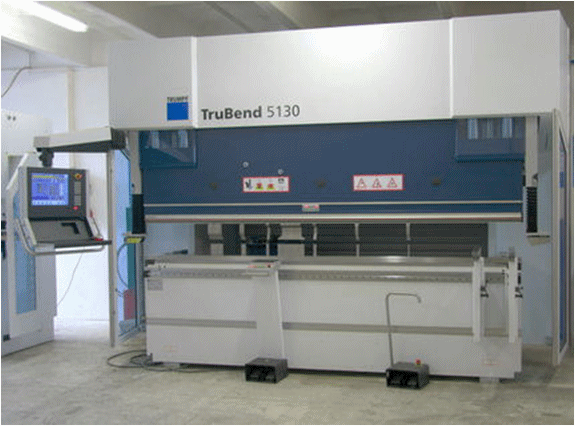

1 x TruBend 5130 9 Axis Brake Press
Press Force 1300 kN, Bending Length 3230mm
Die space / stroke extension +230mm for extra forming height
5-axis Heavy Duty Backgauge system X, X1, R, Z1, Z2
V-axis CNC Crowning
1 Axiz Die Shifting for Hemming & Multiple setups at different heights
Machine control: TRUMPF TASC 6000 with graphic workshop programming
1 x TruBend 5030 9-axis Brake Press
Press force 850 kN, Bending length 2690mm
5-axis Heavy Duty Backgauge system X, X1, R, Z1, Z2
V-axis CNC Crowning
1 Axiz Die Shifting for Hemming & Multiple setups at different heights
Machine control: TRUMPF TASC 6000 with graphic workshop programming

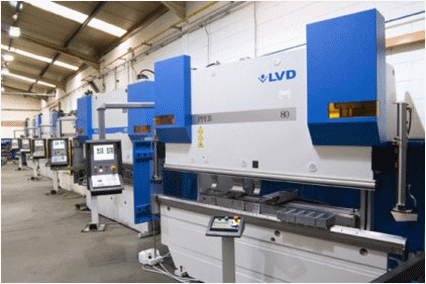

2 x PPEB-8 LEF LVD Brake Presses
Press Force 1300 kN, Bending Length 3000mm
CADMAN CNC Windows Based graphical control, with touch screen
5-axis Heavy Duty Backgauge system X, X1, R, Z1, Z2
V-axis CNC Crowning
Laser Safe Guards with Interlocking Side and Rear Fence
Laser Easy Form angle management system
CADMAN 1 3D Offline Software
1 x PPEB-8 LEF LVD Brake Presses
Press Force 800 kN, Bending Length 2500mm
CADMAN CNC Windows Based graphical control, with touch screen
5-axis Heavy Duty Backgauge system X, X1, R, Z1, Z2
Laser Safe Guards with Interlocking Side and Rear Fence
Contact our sales team for more information on CNC Metal Sheet Forming.
